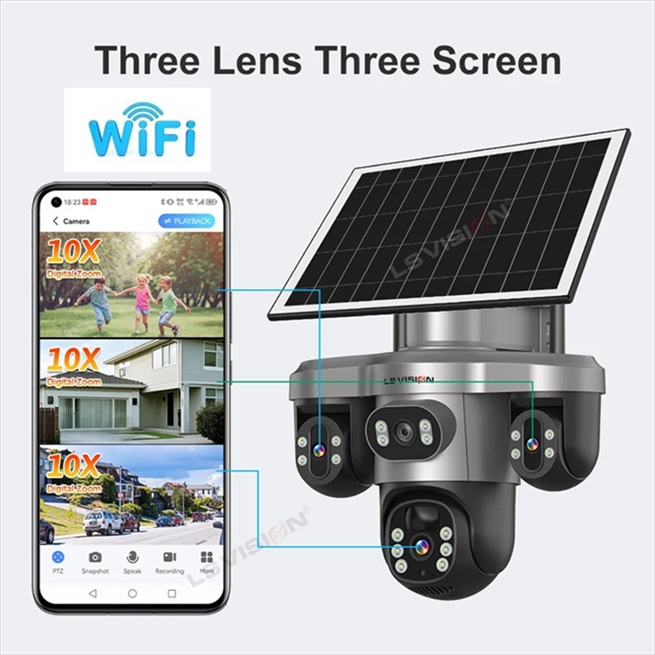

Model No. LS-CS3U-10X
General
Main processor KM01
APP Operation System Android, IOS
Image Senor 2pcs 1/2.7″ Image Sensor
Compression H.265
Resolution 2MP+2MP
Internet Connection
WIFI Support
Alarm
Detection Mode
PIR+Human detection
Detection Distance 0~12M
Detect Angle 110°+110°
Alarm Mode Realtime calling or push message
PTZ
PTZ Angle Horizontal 270 ° Vertica 90°
Speed Horizontal 55 °/S Vertical 40°/S
Night Vision
Full color night vision 0.001 Lux
IR LED infrared LED 20M IR distance
White light LED white light LED 20M distance
Audio
Built-in speaker input 3W
Built-in microphone output voice monitoring distance 20M
Lens
Lens 3.6mm + 3.6mm+8mm
Lens Angle 100°+ 100°
Storage
Cloud Storage storage when alarm recording
Local Storage TF Card Max 128G
Power
Power Supply Mode Solar Panel+ Build in Batteries
Panel Material monocrystalline silicon
Solar Energy Power 8W
Battery Capacity Support 8000mAh batteries
Operating power consumption 4W
Standby consumption 0.003W
Others
Working Environment Indoor/outdoor
Operation Temperature -30°~+60°
Humidity 0~90RH
Weight 1.7 kg
Dimensions 25.2 × 20.2 × 16.4 cm
